Quick Details

  • Type: Packaging Line
  • Condition: New
  • Application: Food
  • Packaging Type: Cans
  • Packaging Material: Metal
  • Automatic Grade: Semi-Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 1.1KW
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gaoxin
  • Model Number: GT1B5
  • Dimension(L*W*H): 1500*1200*800mm
  • Weight: 1400KG
  • Certification: CE Certification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: food tin can making machine produciton line
  • Usage: Used for making food tin cans
  • Color: Any Color As Your Need

Packaging & Delivery

Packaging Details Packed into Export Wooden Case
Delivery Time Shipped in 60 days after payment

Food Tin Can Making Machine Production Line



Product Description









Related Machines as following:

(1)Model:   GT1B5  Disc Cutting Machine/Shearing Machinery



Parameter:



Model:GT1B5 Disc plate cutting machine
Technical Parameter:

The thickness of sheet: <0.5mm

                       Can shear 0.8mm sheets after restructuring

The largest width of sheet: <1050mm

                       Can shear 1300mm width sheet after restructuring

The minimum width of shearing sheet: >40mm

                       Can be up to 28 mm width after restructuring

Motor power: 1.1kw

Size:1500×1200×800mm

Weight: 1400kg

General situation:

This machine is used for batch cutting tinplate or other metal sheet for the following working procedure(such as lid-making or can-manufacturing).







(2)Model: GT3A3 Rounding Machine

Productivity30-50cans/min
Applied can's drivediameter 65-300mm
Applied can's height50-400mm

Usage: The machine is used to shape shell into circle.







(3)Model:FBW-10A Welding&Sealing Machine(Including Coating & Drying)

Productivity30-50cans/min
Applied can's diameter52-200mm
Applied can's height≤400mm
Applicable thickness of metal sheets≤0.5mm
Power consumption80KW
Dimension14880*1500*2050mm
Weightmain equipment 700kg
Usage:This machine is applied for welding various can bodies with capacity of 0.5-20L.

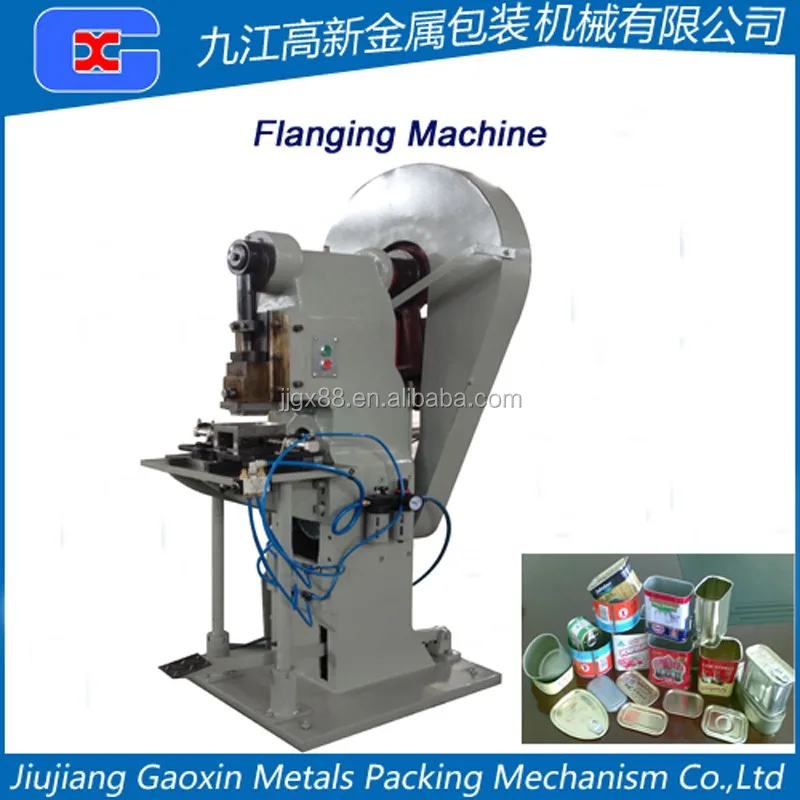

(4)Model: GT3A6A Flanging Machine
Productivity30cans/min
Applied can's drive≥50mm
Applied can's height≤300mm
Motor power0.75KW
Size760*600*1650mm
Weight410kg







 (5) Model: GT3B17 Manual edge-folding and rolling machine

Productivity30cans/min
Power consumption0.37KW
Size300*400*1500mm
Weight150kg

Usage: The machine is used for manual folding and rolling edge of can's body.





(6) Model: 4A7Y Semi-automatic Sealing Machine

Productivity25-30cans/min
Applied can's track and diagonal40-160mm
Motor power1.1KW
Size 900*850*2200mm
Weight600kg

Usage: The machie is mainly used for sealing round cans.



Packaging & Shipping



Our Services

1.Warranty: One year after shipment.

2.Payment: 30% T/T advance payment. After the completion of the machines, customers can dispatch technician to our company to test it. After testified to be qualified, 70% T/T remaining payment before loading the products.



3. Installation and commissioning



Before installation, the seller will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat, the buyer must connect the water and electric and gas into the machines, then the sellers shall send 1technicians to install the production line. Buyer shall pay them US$50/Person/Day. And the buyer shall pay their round-trip air tickets from China jiujiang factory to buyer’s factory, the charge of visa, food transportations and accommodation in buyer’s city. And the working time of technicians is 8 hours per day. The buyer shall also provide an English-Chinese translator who will give help to technicians.



4.Power:3 phase 4 wire, 380V, 50Hz(or according to the user’s requirements)
