Quick Details

  • Type: Packaging Line
  • Condition: New
  • Application: Chemical
  • Packaging Type: Cans
  • Packaging Material: Metal
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 36KW
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gaoxin
  • Model Number: QZD50
  • Dimension(L*W*H): 12880*1980*2050mm
  • Weight: 3800KG
  • Certification: CE Certification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: Automatic Tin Can Welding/Welder Machine
  • Usage: Used for can body rounding,welding,coating and drying.
  • Color: Any Color As Your Need

Packaging & Delivery

Packaging Details Packed into Export Wooden Case
Delivery Time Shipped in 90 days after payment



Aerosol Can Making Machine

Product Description

Related equipments for Aerosol Spray Can Cone&Dome as following:



1.   Model:  NCP-008 NC Punching Machine(35T)



Production Capacity50-120pcs/min
Applicable sheet specs≤900*900mm
Motor Power8KW(equiped with 35T punch)
Dimension2700*2500*2200mm
Weight6600kg

Usage:This punch is manual feeding,NC feeding punch controlled by PLC.





2.   Model:GT2A8 Multi-position Punching Machine(60T)

Slide Stroke11.5-110mm
Frequency of Slide Stroke90-110times/min
Power5.5kw
Weight8000kg
Worktable specs850*850mm

Usage:This ,achine is connected with 35T punch by conveyor line for making the top conver/cone of the aerosol spray cans.







Related equipments for Aerosol Spray Can Body as following:

1.   Model:   GT1B5  Disc Cutting Machine/Shearing Machinery



Parameter:



Model:GT1B5 Disc plate cutting machine
Technical Parameter:

The thickness of sheet: <0.5mm

                       Can shear 0.8mm sheets after restructuring

The largest width of sheet: <1050mm

                       Can shear 1300mm width sheet after restructuring

The minimum width of shearing sheet: >40mm

                       Can be up to 28 mm width after restructuring

Motor power: 1.1kw

Size:1500×1200×800mm

Weight: 1400kg

General situation:

This machine is used for batch cutting tinplate or other metal sheet for the following working procedure(such as lid-making or can-manufacturing).







2.   Model: QZD50 Automatic Tin Can Welding/Welder/Roller Coating+Drying Machine



Production capacity40-60cans/min
Applied can's diameter52-255mm
Motor power36KW
Size12880*1980*2050mm
Weightmain equipment 3800kg



Usage:This prodcution line is applied for can body rounding,welding,drying and coating.

It is manual feeding of well-cut tin or aluminum plates.





3.   Model: GT3B2 Automatic Flanging Machine



Productivity40-100cans/min
Applied can's diameter52-99mm
Applied can's height65-280mm
Applicable thickness of metal sheets≤0.5mm
Power consumption2.2KW
Dimension700*1700*1300mm
Weight1500kg
Usage:This machine is applied for automatic neck-in and flanging of aerosol/spray cans.

4.  Model: 4B2B Automatic Sealing Machine/Can Seamer Machinery
Production capatity20-40cans/min
Applicable can's diameter52-105mm
Applicable can's height50-280mm
Motor power1.5KW
Dimension785*650*2000mm
Net weight2000kg
The machine is applied for automatic sealing of aerosol/spray cans.

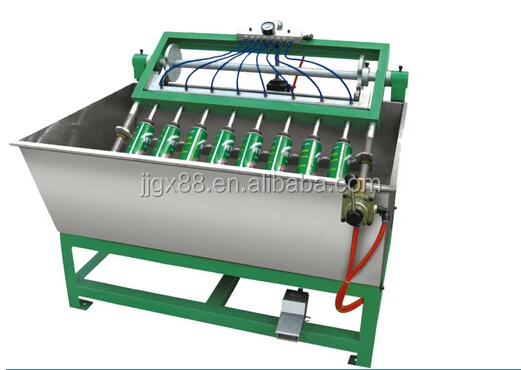

5. Model:  GX-8 Leak Hunting Machine for Aerosol/Spray Can
Productivity 900-1400cans/h
Applicable can's diameter38-66mm
Applicable can's height110-320mm
Detecting positions8
Method of detectingby water
Detecting air pressure0.4-1.2MPa
Consumption of compressed air2000L/h
Dimension1250*850*1200mm
Weight350kg

This machine is mainly used for leak detecting for aerosol cans.
