Quick Details

  • Type: Packaging Line
  • Condition: New
  • Application: Chemical
  • Packaging Type: Cans
  • Packaging Material: Metal
  • Automatic Grade: Semi-Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 1.1KW
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gaoxin
  • Model Number: GT1B5
  • Dimension(L*W*H): 1500*1200*800mm
  • Weight: 1400KG
  • Certification: CE Certification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: square metal can production line
  • Usage: Used for making square tin cans
  • Color: Any Color As Your Need

Packaging & Delivery

Packaging Details Packed into Export Wooden Case
Delivery Time Shipped in 30 days after payment

1-5L Square Tin Can Machine,Semi-automatic Tin Can Making Production Line

1-5L Square Tin Can Machine,Semi-automatic Tin Can Making Production Line



1-5L Square Tin Can Machine, Semi-automatic Tin Can Making Production Line

Product Description







Related equipments as following:
1.   Model:   GT1B5  Disc Cutting Machine/Shearing Machinery



Parameter:



Model:GT1B5 Disc plate cutting machine
Technical Parameter:

The thickness of sheet: <0.5mm

                       Can shear 0.8mm sheets after restructuring

The largest width of sheet: <1050mm

                       Can shear 1300mm width sheet after restructuring

The minimum width of shearing sheet: >40mm

                       Can be up to 28 mm width after restructuring

Motor power: 1.1kw

Size:1500×1200×800mm

Weight: 1400kg

General situation:

This machine is used for batch cutting tinplate or other metal sheet for the following working procedure(such as lid-making or can-manufacturing).







2.   Model: GT3A3 Rounding Machine

Production capacity40-60cans/min
Applied can's diameter105-290mm
Motor power0.25KW
Size800*502*840mm
Weight76kg



Usage:This machine is applied for rounding from cut sheets.







3.   Model:FBW-10A Backward-in Resistance Welding Machine/Welder Machinery



Productivity30-50cans/min
Applied can's diameter38-290mm
Applied can's height≤380mm
Applicable thickness of metal sheets≤0.5mm
Power consumption5KW
Dimension1350*990*1770mm
Weight700kg
Usage:This machine is applied for welding various can bodies with capacity of 0.5-20L.

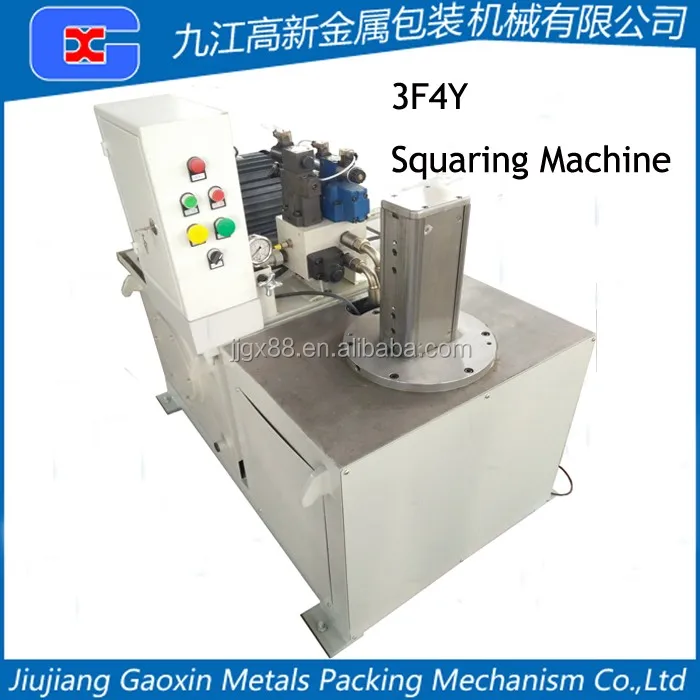

4.  Model: 3F4Y Hydraulic Squaring Machine
The machine is used for forming shell. Replaceing moulds can form different shapes.

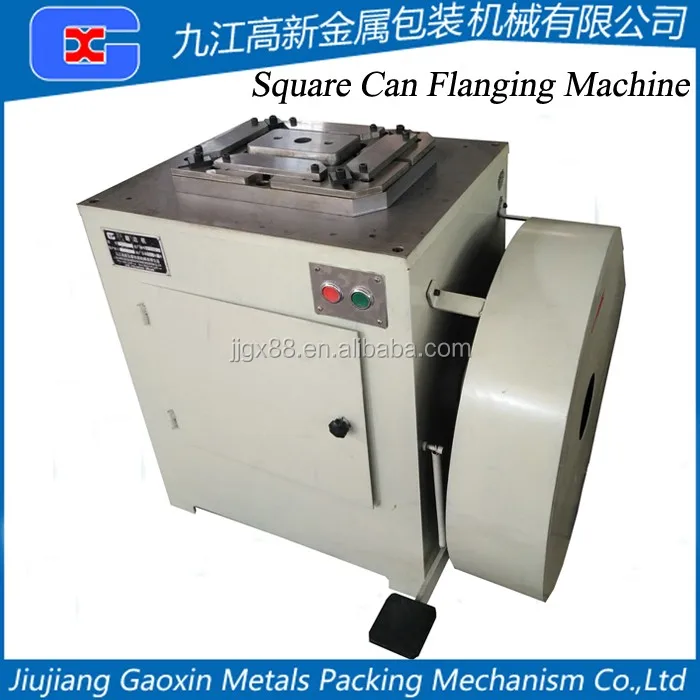

5. Model: 3FB3J Square Can Flanging Machine
This machine applied to various-shaped shells' flanging.

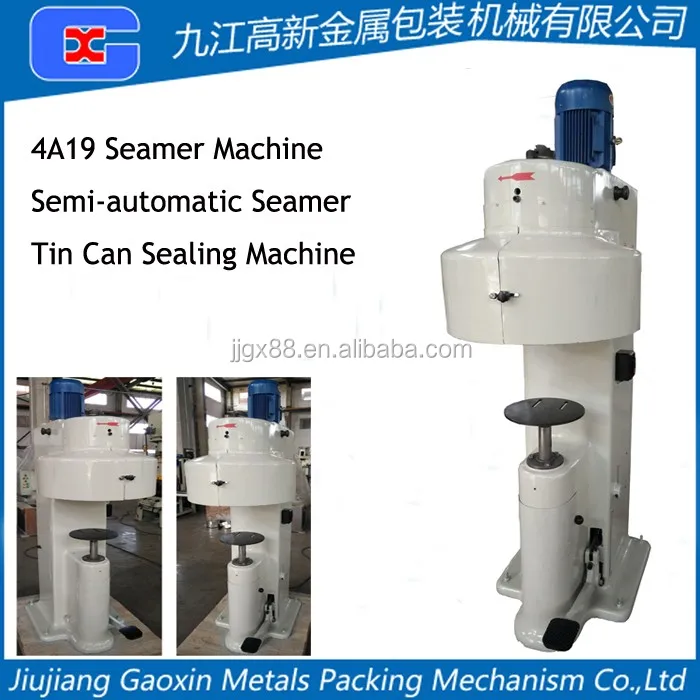

6.  Model: 4A19 Four-wheel Sealing Machine/Seamer Machinery
Productivity8-20cans/min
Applied sheet's thicknes≤0.5mm
Applied can's drive diagonal 50-320mm
Applied can's height370mm
Motor power2.2kw
Size1000*917*1885mm
Weight800kg

The machine can be used for sealing of round and special-shapes cans of can-manufacturing and capacitor industry or other industries.

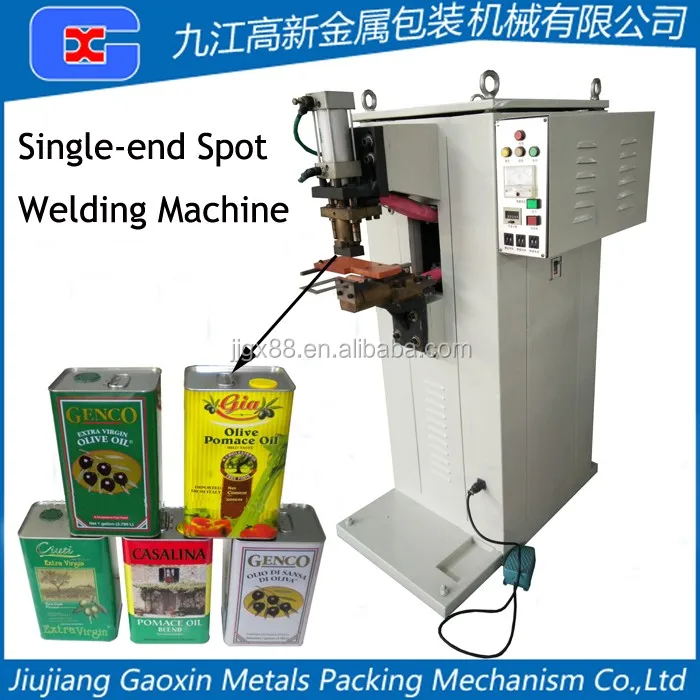

7. Model: Pneumatic Precise Single-head Spot Welding Machine/Spot Welder
Productivity15-20cans/min
Applied iron sheet thickness<0.5mm
Motor power25kw
Size1150*560*1650mm
Weight

This maachine is mainly used for joint welding handle with the ears of can lids.(can eradicate paint directly)



Packaging & Shipping

Packaging: Packed into Wooden Case

Shipping:By Sea/Train

Our Services

1.Warranty: One year after shipment.

2.Payment: 30% T/T advance payment. After the completion of the machines, customers can dispatch technician to our company to test it. After testified to be qualified, 70% T/T remaining payment before loading the products.



3. Installation and commissioning



Before installation, the seller will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat, the buyer must connect the water and electric and gas into the machines, then the sellers shall send 1technicians to install the production line. Buyer shall pay them US$50/Person/Day. And the buyer shall pay their round-trip air tickets from China jiujiang factory to buyer’s factory, the charge of visa, food transportations and accommodation in buyer’s city. And the working time of technicians is 8 hours per day. The buyer shall also provide an English-Chinese translator who will give help to technicians.



4.Power:3 phase 4 wire, 380V, 50Hz(or according to the user’s requirements)





Company Information

 Jiujiang Gaoxin is a professional manufacturer which specialized in machine manufacturing for already 17 years.

We design and manufacture machines/production line for tin cans in various shapes and sizes.
The cans can be used for paint cans, oil cans, food cans, drink cans, chemical cans, aerosol spray cans, etc.
(1)Professional machine manufacturer, already have 17 years experiences;
(2)Supply complete production line as well as single machines and accessories;
(3)Have exported to various countries all over the world.
